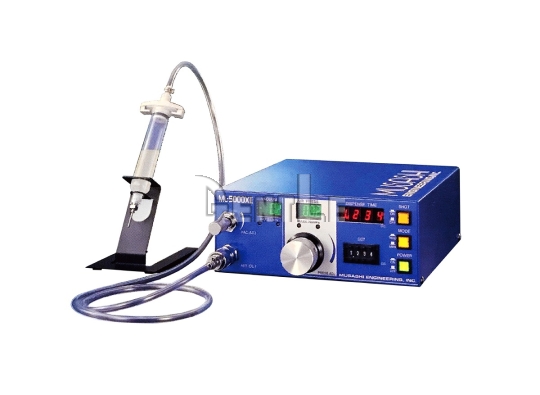

MUSASHI_ML-5000XII
(Discontinued) High-Precision Digital Air-Pulse Dispenser
- Discontinuation Notice: The ML-5000XII has been discontinued. For upgraded features and performance, please choose the MUSASHI ML-6000X.
- Brand
Products
請選擇分類
- All Products
- Pneumatic Series
- GENTLE Pneumatic Fittings
- GENTLE Ionizer
- CONVUM Ltd.
- FUJIKURA
- FUJI LATEX Co., Ltd.
- KOGANEI Corporation
- iB series
- Air Cylinders, Hands
- Air Valves
- Air Filters, Regulators, Pressure Gauges
- Flow Rate Sensor Switches, Plachain Ducts, Pressure Switches
- Vacuum Equipment, Pads
- Electric Actuator
- Environmental Hygiene Equipment
- Static Electricity Removal
- Fluororesin Products
- Fixed Discharge Pump
- Medium Control Equipment
- Pulse Blow Series
- NKE Corporation
- TAKEX
- Dispensing Series
Features
- Air-Pulse Stabilization Circuit: Patented circuitry ensures constant pressure and flow for ultra-stable dispensing.
- 65% Smaller Footprint: Reduces volume by 65% compared to legacy models, saving valuable bench space.
- DIP Switch Input Selection: Toggle between no-voltage or 5V/12V/24V signal inputs for flexible automation integration.
- Wide-Range Timer: 0.01–9999 s dispense timing with one-touch digit toggle for diverse applications.
- CE & RoHS Compliant: Meets global safety and environmental standards for reliable quality.
- Optional Controls: Add a foot switch or handheld switch for convenient dispense ON/OFF control.
※ Discontinuation Notice: The ML-5000XII has been discontinued. For upgraded features and performance, please choose the MUSASHI ML-6000X.
Specification
| Model | ML-5000XII-CTR | |
|---|---|---|
| Control Method | Digital microcomputer + pneumatic | |
| Dispense Modes | Timed / Manual | |
| Dispense Pressure | 0.000 ~ 0.700 MPa | |
| Dispense Time | 0.01 ~ 9999 s | |
| Vacuum Pressure | -0.020 ~ 0 MPa | |
| Main Functions | Vacuum drip prevention (micrometer spec), stopwatch, quick mode switch, DIP input toggle | |
| Dimensions (WxDxH) | W188 x D198 x H76 mm | |
| Weight | 3.4 kg | |
※ Dispense performance depends on material viscosity and particle size.
