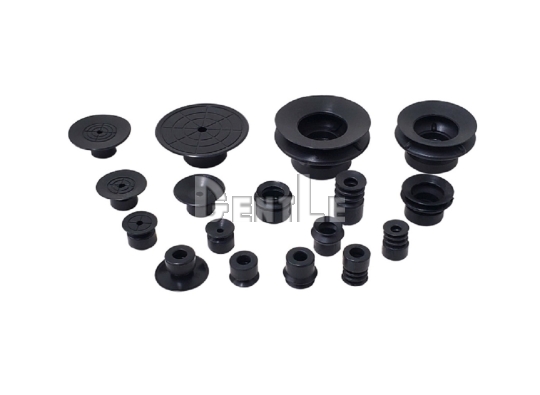

CONVUM ESD Protection Vacuum Pads

• Elec-Con conductive material: Uses CONVUM's Elec-Con material developed for ESD control, with markless, siloxane-free, and ozone-resistant properties.
• 100% surface resistance inspection: Surface resistance is controlled at 1.0×10⁶ to 9.9×10⁹ Ω and measured under ANSI/ESD STM11.13 with inspection on every item shipped.
• Coating-free conductivity: Conductivity comes from the material itself, not from a surface coating, helping reduce resistance fluctuation over time.
• Compatible with ionizers: The ozone-resistant material can be used together with ionizers in ESD-sensitive handling lines.
• Applications: Suitable for electronic components, circuit boards, and other vacuum handling tasks that require ESD control, with flat and bellows styles available up to Φ30.

Q1: What is the ESD Series?
A: ESD Series is CONVUM's vacuum pad line designed for electrostatic discharge control, using Elec-Con material for ESD-sensitive vacuum handling applications.

Q2: How is ESD Series different from standard vacuum pads?
A: The series uses conductive material with controlled surface resistance and 100% inspection, rather than relying on a surface coating for static control.

Q3: Why does it emphasize coating-free conductivity?
A: Because the conductivity comes from the material itself, helping reduce the variation that can occur with coated surfaces over time.

Q4: How is surface resistance managed?
A: Surface resistance is measured under ANSI/ESD STM11.13 and controlled at 1.0×10⁶ to 9.9×10⁹ Ω, with inspection performed on every shipped item.

Q5: Can it be used with ionizers?
A: Yes. The Elec-Con material is ozone-resistant and can be used together with ionizers.

Q6: What pad shapes are available?
A: Flat, thin lip, two-stage bellows, and three-stage bellows styles are available, with sizes up to Φ30.

Q7: What applications is it suited for?
A: It is suited for electronic components, circuit boards, and other vacuum handling tasks that require ESD control.

Q8: What should be confirmed before selection?
A: It is recommended to confirm the workpiece size, surface condition, required pad geometry, whether ionizer use is needed, and the mounting or setting screw arrangement.
