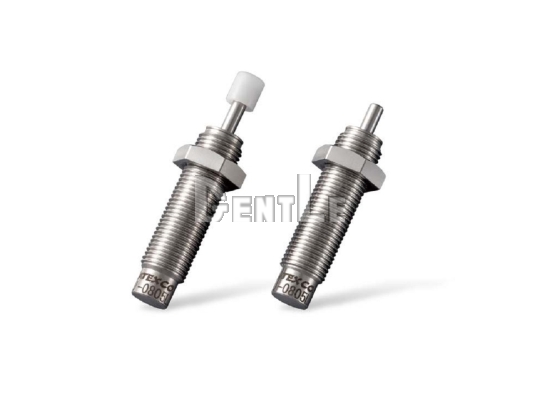

Features
- High Energy Capacity: 12mm stroke absorbs up to 11J impact.
- Stable Control: Reduces vibration and shock for smooth operation.
- Standard Thread: M14x1.5 for simple installation.
- Reliable Build: Japanese manufacturing ensures long-term quality.
- Wide Applications: Ideal for automation, precision machines, and heavy-duty equipment.
Specification
| Model | Screw Pitch | Nut (pcs) | Stroke (mm) | Max. Absorption Energy J (kgf˙m) |
|---|---|---|---|---|
| FNJ-1412L-S | M14 x 1.5 | 1 | 12 | 11 (1.12) |
| FNJ-1412L-C | ||||
| FNJ-1412L-S-F | 2 | |||
| FNJ-1412L-C-F |
