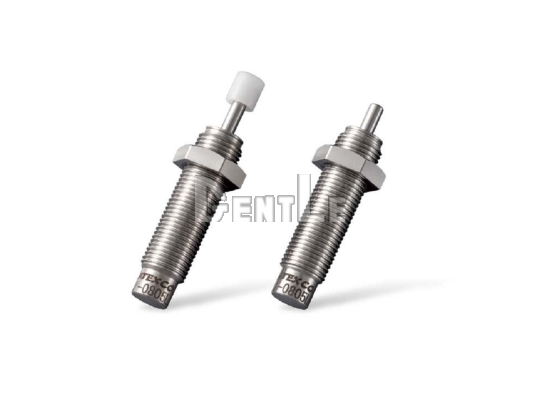

Features
- Mid-High Energy Capacity: 12mm stroke absorbs up to 15.5J.
- Stable Damping: Minimizes vibration and impact for longer equipment life.
- Standard Thread: M16x1.5 ensures easy installation.
- Durable Design: Japanese engineering delivers reliability and longevity.
- Versatile Applications: Ideal for automation, conveyors, and precision machinery.
Specification
| Model | Screw Pitch | Nut (pcs) | Stroke (mm) | Max. Absorption Energy J (kgf˙m) |
|---|---|---|---|---|
| FNJ-1612L-S | M16 x 1.5 | 1 | 12 | 15.5 (1.58) |
| FNJ-1612L-C | ||||
| FNJ-1612L-S-F | 2 | |||
| FNJ-1612L-C-F |
File Downloads
File Name
File Type
Download
FNJ-1612L_E
