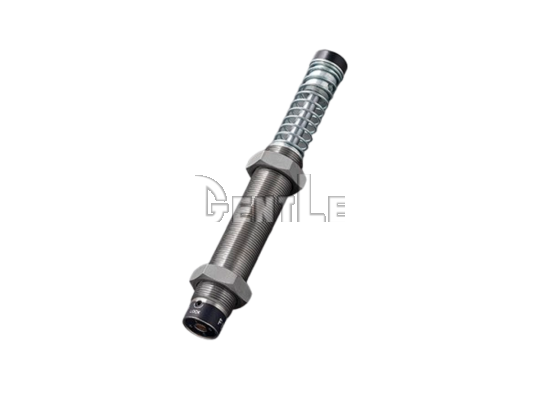

FUJI LATEX FA-2540 / FWM-2540 Long-Stroke Adjustable Shock Absorbers

• Long-stroke cushioning design: The 40 mm stroke supports end-stop applications that require a longer stopping distance than standard short-stroke adjustable models.
• Adjustable hydraulic cushioning: Damping performance can be adjusted according to machine load, impact speed, and stopping conditions.
• Three absorption characteristics: FA-2540LB is for low-speed conditions, FA-2540LD is for high-speed conditions, and FWM-2540LBD is for medium-speed conditions, especially pneumatic cylinder applications.
• M25 mounting specification: M25×1.5 is the standard thread size, and M25×2.0 is also available depending on equipment mounting requirements.
• Catalog download and inquiry support: Customers can check dimensions and drawings in the catalog or contact GATO Corporation with machine conditions for model selection support.

Q1: What is the FUJI LATEX FA-2540 / FWM-2540 Series?
A: The FUJI LATEX FA-2540 / FWM-2540 Series is a long-stroke adjustable hydraulic shock absorber for absorbing impact at automation equipment, cylinder, transfer-mechanism, and conveyor end stops.

Q2: What equipment is the FA-2540 / FWM-2540 Series suitable for?
A: It is suitable for automation equipment, cylinder ends, slide ends, transfer mechanisms, conveyors, and industrial machinery end stops.

Q3: What is the difference between FA-2540 / FWM-2540 and standard FA / FWM?
A: FA-2540 / FWM-2540 is a 40 mm long-stroke specification with a different appearance and operating range from standard compact and mid-size FA / FWM models.

Q4: Is FA-2540 / FWM-2540 fixed or adjustable?
A: FA-2540 / FWM-2540 is an adjustable hydraulic shock absorber series that allows damping performance to be adjusted according to machine load, impact speed, and stopping conditions.

Q5: What main models are available?
A: Main models include FA-2540LB, FA-2540LD, and FWM-2540LBD. M25×2.0 thread versions are also available.

Q6: What is the maximum absorption energy?
A: The maximum absorption energy is 63.7 J, and the absorption energy per minute is 637 J/min.

Q7: How should FA-2540LB, FA-2540LD, and FWM-2540LBD be selected?
A: FA-2540LB is suitable for low-speed conditions, FA-2540LD for high-speed conditions, and FWM-2540LBD for medium-speed conditions. Final selection should match machine speed, load, and cycle rate.

Q8: Can FA-2540 / FWM-2540 reduce machine impact noise?
A: Yes. Hydraulic cushioning helps reduce end-stop impact, collision noise, vibration, and mechanical wear.

Q9: What should be checked when using FA-2540 / FWM-2540?
A: Confirm mounting strength, external stopper design, impact speed, cycle rate, and end-stop structure to avoid loads beyond the intended range.

Q10: How do I select the right FA-2540 / FWM-2540 model?
A: Check maximum absorption energy, equivalent mass, impact speed, cycles per minute, thread size, and end-stop structure, then download the catalog or contact GATO Corporation for selection support.
