Bellofram Seal Type Fixed Shock Absorbers
| Item | FA-1212C |
|---|---|
| Product type | Bellofram Seal Type fixed hydraulic shock absorber |
| Series models | FA-1212C1-C FA-1212C2-C FA-1212C3-C FA-1212C4-C FA-1212C5-C |
| Model characteristics | Bellofram Seal Type, dashpot structure, soft small-energy absorption |
| Thread size | M12×1.0 |
| Stroke range | 12 mm |
| Max. absorption energy | 0.29 ~ 1.0 J |
| Absorption energy per minute | 5.0 ~ 14.7 J/min |
| Impact speed range | 0.1 ~ 1.0 m/s |
| Max. equivalent mass | 1.5 ~ 10 kg |
| Max. operation cycle | 5 ~ 45 cycles/min |
| Operating temperature range | -10 ~ 50 ℃ |
| Max. drag | 245 ~ 294 N |
| Body material | Resin |
| Product mass | 15 g |

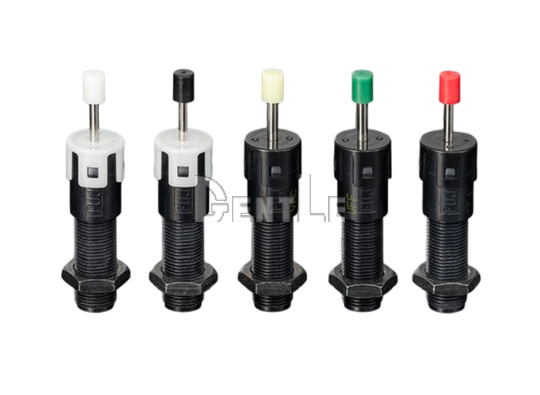

| Rod cap colors | White, black, yellow, green, red |
Specification notes
Q1: What is the FUJI LATEX FA-1212C Series?
A: The FUJI LATEX FA-1212C Series is a Bellofram Seal Type fixed hydraulic shock absorber for absorbing impact at precision equipment, compact slides, cylinder ends, and light-load equipment end stops.
Q2: What equipment is the FA-1212C Series suitable for?
A: It is suitable for precision equipment, compact automation equipment, compact slides, cylinder ends, inspection equipment, transfer mechanisms, and compact industrial machinery end stops.
Q3: What is the difference between FA-1212C and general compact fixed shock absorbers?
A: FA-1212C uses a Bellofram Seal Type structure for softer small-energy impact absorption. Other compact fixed models may have different structures and absorption characteristics.
Q4: Is FA-1212C fixed or adjustable?
A: FA-1212C is a fixed hydraulic shock absorber series with no adjustment knob, suitable for machines with stable load, speed, and stopping conditions.
Q5: What models are available in the FA-1212C Series?
A: Main models include FA-1212C1-C, FA-1212C2-C, FA-1212C3-C, FA-1212C4-C, and FA-1212C5-C.
Q6: What is the maximum absorption energy?
A: Depending on the model, maximum absorption energy ranges from 0.29 to 1.0 J, making the series suitable for small-energy and light-load end-stop applications.
Q7: How should FA-1212C1-C to FA-1212C5-C be selected?
A: Selection depends on maximum absorption energy, equivalent mass, impact speed, and cycle rate. The rod cap colors also help identify each model on site.
Q8: Can FA-1212C reduce machine impact noise?
A: Yes. Hydraulic cushioning helps reduce end-stop impact, collision noise, vibration, and mechanical wear.
Q9: What should be checked when using FA-1212C?
A: Confirm mounting strength, external stopper design, impact speed, cycle rate, equivalent mass, and end-stop structure to avoid loads beyond the intended range.
Q10: How do I select the right FA-1212C model?
A: Check maximum absorption energy, equivalent mass, impact speed, cycles per minute, stroke, thread size, and available end-stop space, then download the catalog or contact GATO Corporation for selection support.
