Low-Speed Fixed Shock Absorbers
| Item | FA-1212L |
|---|---|
| Product type | Low-speed fixed hydraulic shock absorber |
| Series models | FA-1212L1-C FA-1212L3-C FA-1212L5-C |
| Model characteristics | Bellofram seal structure, single-orifice structure, low-speed cushioning, speed-control application |
| Thread size | M12×1.0 |
| Stroke range | 12 mm |
| Max. absorption energy | 1.5 J |
| Reference load | 3 kg |
| Reference thrust | 30 N |
| Impact speed range | FA-1212L1-C: 0.7 m/s or lower FA-1212L3-C: 0.5 m/s or lower FA-1212L5-C: 0.3 m/s or lower |
| Motion time | FA-1212L1-C: 0.3 ~ 2.0 sec FA-1212L3-C: 2.3 ~ 4.0 sec FA-1212L5-C: 4.3 ~ 6.0 sec |
| Piston rod return force | 9 N or lower |
| Max. thrust | FA-1212L1-C: 49 N FA-1212L3-C: 78 N FA-1212L5-C: 117 N |
| Max. drag | 490 N |
| Operating temperature range | -10 ~ 50 ℃ |
| Body material | Resin |
| Product mass | 15 g |

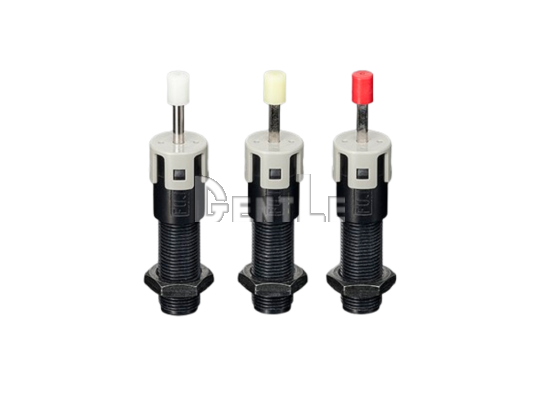

| Rod cap colors | FA-1212L1-C: white FA-1212L3-C: yellow FA-1212L5-C: red |
Specification notes
Q1: What is the FUJI LATEX FA-1212L Series?
A: The FUJI LATEX FA-1212L Series is a low-speed fixed hydraulic shock absorber for compact equipment, precision mechanisms, compact slides, and cylinder-end impact absorption.
Q2: What equipment is the FA-1212L Series suitable for?
A: It is suitable for compact automation equipment, precision equipment, compact slides, cylinder ends, inspection equipment, low-speed moving mechanisms, and compact industrial machinery end stops.
Q3: What is the difference between FA-1212L and FA-1212C?
A: FA-1212L is designed for low-speed and speed-control applications, while FA-1212C focuses on soft small-energy impact absorption. Their appearance and application scenarios are different, so separate selection is recommended.
Q4: Is FA-1212L fixed or adjustable?
A: FA-1212L is a fixed hydraulic shock absorber series with no adjustment knob, suitable for compact machines with stable speed and stopping conditions.
Q5: What models are available in the FA-1212L Series?
A: Main models include FA-1212L1-C, FA-1212L3-C, and FA-1212L5-C.
Q6: What is the maximum absorption energy?
A: The FA-1212L Series has a maximum absorption energy of 1.5 J, making it suitable for small-energy and low-speed end-stop applications.
Q7: How should FA-1212L1-C, FA-1212L3-C, and FA-1212L5-C be selected?
A: Select by impact speed and motion time. FA-1212L1-C is for faster low-speed conditions, FA-1212L3-C is for middle conditions, and FA-1212L5-C is for slower movement and longer motion time.
Q8: Can FA-1212L reduce machine impact noise?
A: Yes. Hydraulic cushioning helps reduce end-stop impact, collision noise, vibration, and mechanical wear.
Q9: What should be checked when using FA-1212L?
A: Confirm mounting strength, external stopper design, impact speed, motion time, thrust, and end-stop structure to avoid loads beyond the intended range.
Q10: How do I select the right FA-1212L model?
A: Check impact speed, motion time, maximum absorption energy, thrust, stroke, thread size, and available end-stop space, then download the catalog or contact GATO Corporation for selection support.
