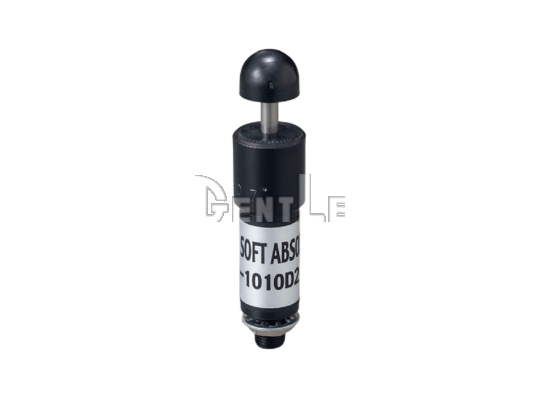

Bellofram Seal Type Fixed Shock Absorbers
| Item | FA-1010D／FA-1215B |
|---|---|
| Product type | Bellofram Seal Type fixed hydraulic shock absorber |
| Series models | FA-1010D2-C FA-1010D3-C FA-1010D4-C FA-1215B1-C FA-1215B2-C |
| Model characteristics | Bellofram Seal Type, groove-orifice structure, soft small-energy absorption |
| Thread sizes | FA-1010D：M8×0.75 FA-1215B：M20×1.5 |
| Stroke range | 10 ~ 15 mm |
| Max. absorption energy | 0.98 ~ 11.7 J |
| Absorption energy per minute | 44.1 ~ 245 J/min |
| Impact speed range | FA-1010D：0.1 ~ 1.0 m/s FA-1215B：0.1 ~ 1.5 m/s |
| Max. equivalent mass | 10 ~ 40 kg |
| Max. operation cycle | FA-1010D: 45 cycles/min |
| Operating temperature range | -10 ~ 50 ℃ |
| Max. drag | 980 ~ 1,960 N |
| Piston rod return force | FA-1010D: 5.88 N or lower FA-1215B: 11.8 N or lower |
| Product mass | FA-1010D：41.5 g FA-1215B：116 g |
Specification notes
Q1: What is the FUJI LATEX FA-1010D / FA-1215B Series?
A: The FUJI LATEX FA-1010D / FA-1215B Series is a Bellofram Seal Type fixed hydraulic shock absorber for absorbing impact at compact equipment, precision mechanisms, compact slides, cylinder ends, and light-load equipment end stops.
Q2: What equipment is the FA-1010D / FA-1215B Series suitable for?
A: It is suitable for compact automation equipment, precision equipment, compact slides, cylinder ends, transfer mechanisms, inspection equipment, and compact industrial machinery end stops.
Q3: What is the difference between FA-1010D / FA-1215B and FA-1212C?
A: FA-1010D / FA-1215B also uses a Bellofram Seal Type structure, but the size and absorption energy range are higher. FA-1212C is designed for smaller-energy soft absorption applications.
Q4: Is FA-1010D / FA-1215B fixed or adjustable?
A: FA-1010D / FA-1215B is a fixed hydraulic shock absorber series with no adjustment knob, suitable for machines with stable load, speed, and stopping conditions.
Q5: What models are available in the FA-1010D / FA-1215B Series?
A: Main models include FA-1010D2-C, FA-1010D3-C, FA-1010D4-C, FA-1215B1-C, and FA-1215B2-C.
Q6: What is the maximum absorption energy?
A: Depending on the model, maximum absorption energy ranges from 0.98 to 11.7 J.
Q7: How should FA-1010D and FA-1215B be selected?
A: FA-1010D has a 10 mm stroke and is suitable for smaller installation space and lower absorption energy requirements. FA-1215B has a 15 mm stroke and supports higher absorption energy.
Q8: Can FA-1010D / FA-1215B reduce machine impact noise?
A: Yes. Hydraulic cushioning helps reduce end-stop impact, collision noise, vibration, and mechanical wear.
Q9: What should be checked when using FA-1010D / FA-1215B?
A: Confirm mounting strength, external stopper design, impact speed, cycle rate, equivalent mass, and end-stop structure to avoid loads beyond the intended range.
Q10: How do I select the right FA-1010D / FA-1215B model?
A: Check maximum absorption energy, equivalent mass, impact speed, cycles per minute, stroke, thread size, and available end-stop space, then download the catalog or contact GATO Corporation for selection support.
