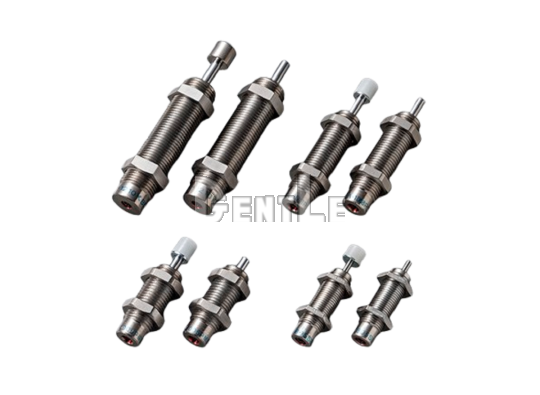

Compact Fixed Shock Absorbers
| Item | FA-SB／PMB／PB／KB |
|---|---|
| Product type | Compact fixed hydraulic shock absorber |
| Series models | FA-0805SB1 FA-0805SB2 FA-1005PMB1 FA-1005PMB2 FA-1008PB1 FA-1008PB2 FA-1210KB1 FA-1210KB2 |
| Model characteristics | Compact fixed type, short stroke, single-orifice damping structure |
| Thread sizes | M8×0.75, M8×1.0, M10×1.0, M12×1.0 |
| Stroke range | 5 ~ 10 mm |
| Max. absorption energy | 0.39 ~ 2.45 J |
| Absorption energy per minute | 17.6 ~ 98 J/min |
| Impact speed range | 0.3 ~ 1.0 m/s |
| Max. equivalent mass | 3 ~ 30 kg |
| Max. operation cycle | 45 ~ 60 cycles/min |
| Operating temperature range | -5 ~ 70 ℃ |
| Max. drag | 490 ~ 1,470 N |
| Piston rod return force | 4.9 ~ 9.8 N or lower |
| Product mass | 8.6 ~ 32.6 g |
| Rod cap colors | White, black |
Specification notes
Q1: What is the FUJI LATEX FA-SB / PMB / PB / KB Series?
A: The FUJI LATEX FA-SB / PMB / PB / KB Series is a compact fixed hydraulic shock absorber lineup for short-stroke impact absorption in compact equipment, precision mechanisms, compact slides, and cylinder ends.
Q2: What equipment is the FA-SB / PMB / PB / KB Series suitable for?
A: It is suitable for compact automation equipment, precision equipment, compact slides, cylinder ends, inspection equipment, transfer mechanisms, and compact industrial machinery end stops.
Q3: What is the difference between FA-SB / PMB / PB / KB and FA-1212C?
A: FA-SB / PMB / PB / KB focuses on general compact short-stroke fixed cushioning, while FA-1212C uses a Bellofram Seal Type structure for soft small-energy absorption.
Q4: Is FA-SB / PMB / PB / KB fixed or adjustable?
A: FA-SB / PMB / PB / KB is a fixed hydraulic shock absorber lineup with no adjustment knob, suitable for compact machines with stable load, speed, and stopping conditions.
Q5: What models are available in the FA-SB / PMB / PB / KB Series?
A: Main models include FA-0805SB1, FA-0805SB2, FA-1005PMB1, FA-1005PMB2, FA-1008PB1, FA-1008PB2, FA-1210KB1, and FA-1210KB2.
Q6: What is the maximum absorption energy?
A: Depending on the model, maximum absorption energy ranges from 0.39 to 2.45 J, making the series suitable for compact equipment and short-stroke end-stop cushioning.
Q7: How should FA-0805SB, FA-1005PMB, FA-1008PB, and FA-1210KB be selected?
A: Start with thread size and stroke, then confirm absorption energy and equivalent mass. FA-0805SB is M8 with a 5 mm stroke; FA-1005PMB is M10 with a 5 mm stroke; FA-1008PB is M10 with an 8 mm stroke; FA-1210KB is M12 with a 10 mm stroke.
Q8: Are cap and capless versions available?
A: Yes. The order suffix -S means without cap, and -C means with cap. Final selection should match the contact method and available installation space.
Q9: What should be checked when using FA-SB / PMB / PB / KB?
A: Confirm mounting strength, external stopper design, impact speed, cycle rate, equivalent mass, and end-stop structure to avoid loads beyond the intended range.
Q10: How do I select the right FA-SB / PMB / PB / KB model?
A: Check maximum absorption energy, equivalent mass, impact speed, cycles per minute, stroke, thread size, and available end-stop space, then download the catalog or contact GATO Corporation for selection support.
