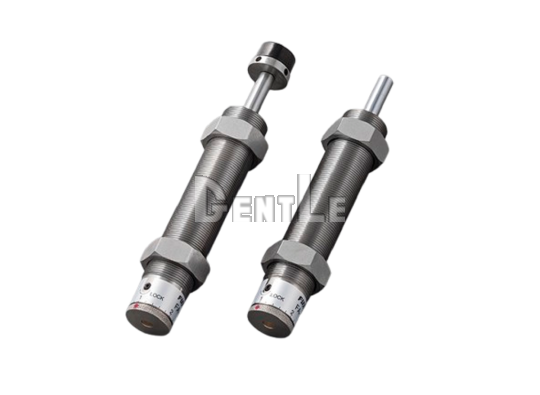

Adjustable Hydraulic Shock Absorbers
| Item | FA-3035 |
|---|---|
| Product type | Adjustable hydraulic shock absorber for industrial machinery |
| Series models | FA-3035TD-S FA-3035TD-C FWM-3035TBD-S FWM-3035TBD-C FA-3035SL-S FA-3035SL-C |
| Model characteristics | High-speed, wide-speed-range, and low-speed high-equivalent-mass types |
| Orifice structures | Multiple-orifice and multiple-varying-orifice structures |
| Thread size | M30×1.5 |
| Stroke | 35 mm |
| Max. absorption energy | 196 J |
| Absorption energy per minute | 1,176 J/min |
| Impact speed range | 0.05～3 m/s |
| Max. equivalent mass | 700～30,000 kg |
| Max. cycle rate | 15 ~ 30 cycles/min |
| Operating temperature range | -5 ~ 70 ℃ |
| Max. drag | 16,660 N |
| Piston rod return force | 60 N or lower |
| Product mass | Capless model: 710 g capped model: 760 g |
| End types | -S: capless -C: with cap |
| Allowable eccentric angle | Within ±2.5° |
Specification notes
Q1: What is the FUJI LATEX FA-3035 Series?
A: The FUJI LATEX FA-3035 Series is an adjustable hydraulic shock absorber range with a 35 mm stroke and 196 J maximum absorption energy for industrial machinery and automation equipment end stops.
Q2: What equipment is the FA-3035 Series suitable for?
A: It is suitable for automation equipment, transfer mechanisms, pneumatic cylinder drives, slides, conveyors, and other industrial machinery requiring end-stop deceleration and impact absorption.
Q3: What is the difference between FA-3035TD, FWM-3035TBD, and FA-3035SL?
A: FA-3035TD suits high-speed impact, FWM-3035TBD covers a wider speed range, and FA-3035SL supports low-speed mechanisms with high equivalent mass.
Q4: Is the FA-3035 Series fixed or adjustable?
A: The FA-3035 Series is adjustable. Damping can be set with the adjustment knob at the bottom of the body and secured with the locking screw.
Q5: Which models are included in the FA-3035 Series?
A: Models include FA-3035TD-S, FA-3035TD-C, FWM-3035TBD-S, FWM-3035TBD-C, FA-3035SL-S, and FA-3035SL-C.
Q6: What is the maximum absorption energy of the FA-3035 Series?
A: All three models provide 196 J maximum absorption energy per impact and 1,176 J/min maximum absorption energy per minute.
Q7: How should FA-3035TD, FWM-3035TBD, and FA-3035SL be selected?
A: Select by impact speed first. FA-3035TD covers 0.7–3 m/s, FWM-3035TBD covers 0.3–2 m/s, and FA-3035SL covers 0.05–0.5 m/s. Then confirm equivalent mass and cycle rate.
Q8: What is the difference between the -S and -C suffixes?
A: The -S suffix indicates a capless model, while -C indicates a model supplied with a cap. Select according to the contact surface and available installation space.
Q9: What should be checked when using the FA-3035 Series?
A: Confirm mounting strength, external stopper design, impact speed, equivalent mass, cycle rate, and eccentric angle. Do not use the product in a vacuum or where it may directly contact oil.
Q10: How do I select the correct FA-3035 model?
A: Confirm maximum absorption energy, moving mass, equivalent mass, impact speed, cycles per minute, installation space, and impact angle, then contact GATO Corporation for selection support.
