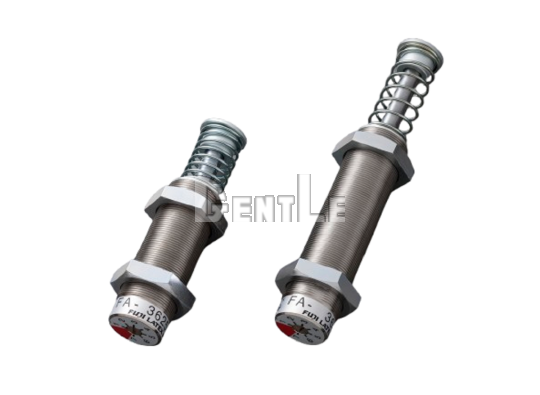

FUJI LATEX FA-3625 / FA-3650 A / SL Adjustable Shock Absorbers

• Two stroke options: FA-3625 models provide a 25 mm stroke, while FA-3650 models provide a 50 mm stroke for different deceleration distances and installation requirements.
• 200 to 400 J capacity: FA-3625 models absorb up to 200 J, while FA-3650 models absorb up to 400 J for large slides, transfer systems, and machinery end stops.
• Multiple speed conditions: A1 and A2 models suit standard-speed operation, A3 models suit high-speed impact, and SL models support low-speed mechanisms with high equivalent mass.
• Continuous damping adjustment: The adjustment section can be turned with a slotted screwdriver and set between numbered scale positions to match machine load, speed, and stopping conditions.
• Catalog download and selection support: Models can be selected by absorption energy, equivalent mass, impact speed, cycle rate, stroke, and installation space. Catalogs and drawings are available for review.

Q1: What is the FUJI LATEX FA-3625 / FA-3650 Series?
A: The FUJI LATEX FA-3625 / FA-3650 Series consists of large adjustable hydraulic shock absorbers for end-stop impact absorption in automation equipment, transfer systems, large slides, and industrial machinery.

Q2: What equipment is the FA-3625 / FA-3650 Series suitable for?
A: It is suitable for large automation equipment, conveyors, transfer mechanisms, large slides, pneumatic cylinder drives, and industrial machinery requiring end-stop deceleration.

Q3: What is the difference between FA-3625 and FA-3650?
A: FA-3625 models have a 25 mm stroke and 200 J capacity. FA-3650 models have a 50 mm stroke and 400 J capacity for longer deceleration distances and higher impact energy.

Q4: Is the FA-3625 / FA-3650 Series fixed or adjustable?
A: The series is adjustable. Its damping characteristics can be continuously adjusted with a slotted screwdriver and set between numbered scale positions.

Q5: Which models are included in this series?
A: Models include FA-3625A1-, FA-3625A3-, FA-3625SL-C, FA-3650A2-C, FA-3650A3-C, and FA-3650SL-C.

Q6: What is the maximum absorption energy?
A: FA-3625 models provide 200 J per impact and 1,500 J/min. FA-3650 models provide 400 J per impact and 2,352 J/min.

Q7: How should A1, A2, A3, and SL models be selected?
A: A1 and A2 models suit standard-speed operation, A3 models suit high-speed impact from 0.7 to 3 m/s, and SL models suit low-speed impact from 0.05 to 0.5 m/s.

Q8: Can the adjusted damping position be locked?
A: This series does not include a locking screw for securing the adjusted position. Check the adjustment during machine testing and inspect it periodically.

Q9: What should be checked before installation?
A: Confirm mounting strength, external stopper design, impact speed, equivalent mass, cycle rate, and eccentric angle to prevent loads beyond the specified range.

Q10: How do I select the correct FA-3625 / FA-3650 model?
A: Confirm absorption energy, equivalent mass, impact speed, cycles per minute, stroke, installation space, and impact angle, then contact GATO Corporation for selection support.
