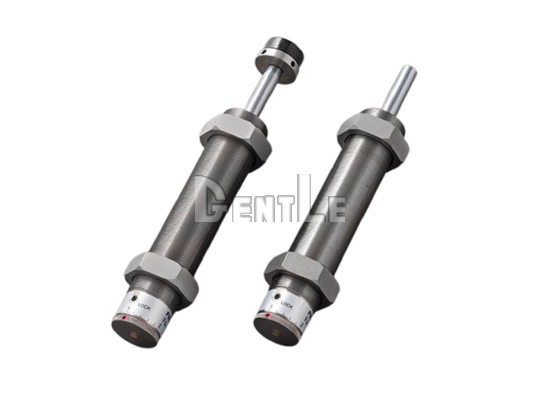

FUJI LATEX FA-3650UD FWM-3650UBD large adjustable hydraulic shock absorbers
FUJI LATEX FA-3650UD FWM-3650UBD large adjustable hydraulic shock absorbers
FUJI SEIKI_FA-3650UD_FWM-3650UBD

Adjustable Hydraulic Shock Absorbers

  • FUJI LATEX FA-3650UD/FWM-3650UBD shock absorbers offer a 50 mm stroke and 392 J capacity for high- and medium-speed industrial impact control, providing stable end-stop cushioning, reduced vibration, and reliable performance in automation and heavy-duty machinery applications.
  • Brand FUJI SEIKI
：
Add to Inquiry Cart
Features
  • High- and medium-speed models: FA-3650UD supports high-speed impact from 0.7 to 3 m/s, while FWM-3650UBD covers medium speeds from 0.3 to 2 m/s.
  • 50 mm stroke and 392 J capacity: Both series provide a 50 mm stroke and maximum absorption energy of 392 J for industrial machinery and automation equipment end stops.
  • Different orifice structures: FA-3650UD uses a single-orifice structure for high-speed impact, while FWM-3650UBD uses a multiple-varying-orifice structure for pneumatic drives and medium-speed operation.
  • Adjustable and lockable damping: Damping can be continuously adjusted with the knob at the bottom of the body and secured with a locking screw.
  • Catalog download and selection support: Models can be selected by absorption energy, equivalent mass, impact speed, cycle rate, stroke, and installation space. Catalogs and drawings are available for review.
Specification
ItemFA-3650UD／FWM-3650UBD
Product typeLarge adjustable hydraulic shock absorber
Series modelsFA-3650UD-S
FA-3650UD-C
FWM-3650UBD-S
FWM-3650UBD-C
Model characteristicsHigh-speed and medium/wide-speed-range types
Thread sizeM36×1.5
Stroke50 mm
Max. absorption energy392 J
Absorption energy per minute2,352 J/min
Impact speed range0.3～3 m/s
Max. equivalent mass1,400～2,700 kg
Max. cycle rate30 cycles/min
Operating temperature range-5 ~ 70 ℃
Max. drag23,520 N
Piston rod return force68.6 N or lower
Product massCapless model: 1,330 g
capped model: 1,410 g
End types-S: capless
-C: with cap
Allowable eccentric angleWithin ±2.5°

Specification notes

  • The FA-3650UD / FWM-3650UBD Series consists of M36×1.5 large adjustable hydraulic shock absorbers with a 50 mm stroke for end-stop deceleration and impact absorption.
  • FA-3650UD suits high-speed moving mechanisms. FWM-3650UBD is designed for medium-speed operation, pneumatic cylinder drives, and machines with changing operating speeds.
  • Damping can be continuously adjusted with the knob at the bottom of the body and set between numbered scale positions. Secure the setting with the locking screw after adjustment.
  • Ensure mounting strength of approximately two to three times the listed maximum drag and install an external stopper. Keep the eccentric angle within ±2.5°.
  • Optional parts include the OP-020UB stopper nut, OP-010UB eccentric angle adaptor, and OP-040UB square flange. The eccentric angle adaptor supports angles up to ±10°.
  • Do not turn the oil inlet screw at the bottom of the body. Do not use the product in a vacuum or where it may come into direct contact with oil. Review the catalog and drawings or contact GATO Corporation for selection support.
FAQ

Q1: What is the FUJI LATEX FA-3650UD / FWM-3650UBD Series?
A: The series consists of large adjustable hydraulic shock absorbers for end-stop impact absorption in automation equipment, large slides, transfer systems, and industrial machinery.


Q2: What equipment is this series suitable for?
A: It is suitable for large automation equipment, conveyors, transfer mechanisms, large slides, pneumatic cylinder drives, and industrial machinery requiring end-stop deceleration.


Q3: What is the difference between FA-3650UD and FWM-3650UBD?
A: FA-3650UD supports high-speed impact from 0.7 to 3 m/s. FWM-3650UBD covers 0.3 to 2 m/s for medium-speed operation and pneumatic cylinder drives.


Q4: Is this series fixed or adjustable?
A: The series is adjustable. Damping can be continuously set with the knob at the bottom of the body and secured with the locking screw.


Q5: Which full model numbers are available?
A: Models include FA-3650UD-S, FA-3650UD-C, FWM-3650UBD-S, and FWM-3650UBD-C.


Q6: What is the maximum absorption energy?
A: Both series provide 392 J maximum absorption energy per impact and 2,352 J/min maximum absorption energy per minute.


Q7: How should FA-3650UD and FWM-3650UBD be selected?
A: Select by impact speed first. FA-3650UD covers 0.7–3 m/s, while FWM-3650UBD covers 0.3–2 m/s. Then confirm equivalent mass and drive method.


Q8: What is the difference between the -S and -C suffixes?
A: The -S suffix indicates a capless model, while -C indicates a model supplied with an impact cap.


Q9: What should be checked before installation?
A: Confirm mounting strength, external stopper design, impact speed, equivalent mass, cycle rate, and eccentric angle. Do not use the product in a vacuum or where it may directly contact oil.


Q10: How do I select the correct model?
A: Confirm absorption energy, equivalent mass, impact speed, cycles per minute, drive method, installation space, and impact angle, then contact GATO Corporation for selection support.
