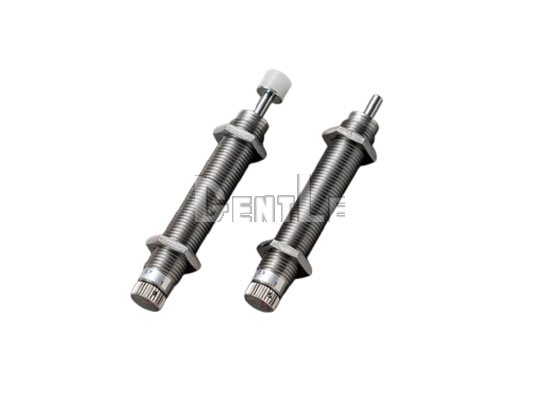

Copper-Free Adjustable Shock Absorbers
| Item | FA/FWM-B Series |
|---|---|
| Product type | Copper-free adjustable hydraulic shock absorber |
| Series models | FA-B0806-S／C FA-B1008VB-S／C FA-B1008VD-S／C FWM-B1008VBD-S／C FA-B1210MB-S／C FA-B1210MD-S／C FWM-B1210MBD-S／C FA-B1410RB-S／C FA-B1410RD-S／C FWM-B1410RBD-S／C FA-B1612XB-S／C FA-B1612XD-S／C FWM-B1612XBD-S／C FA-B2016EB-S／C FA-B2016ED-S／C FWM-B2016EBD-S／C FA-B2530GB-S／C FA-B2530GD-S／C FWM-B2530GBD-S／C FA-B2540LB-C FA-B2540LD-C FWM-B2540LBD-C FA-B2725FB-S／C FA-B2725FD-S／C FWM-B2725FBD-S／C |
| Model characteristics | Copper-free specification, low-speed, high-speed, and medium-speed types |
| Thread size | M8×0.75, M10×1, M12×1, M14×1.5, M16×1.5, M20×1.5, M25×1.5, M27×1.5 |
| Stroke | 6 mm, 8 mm, 10 mm, 12 mm, 16 mm, 25 mm, 30 mm, 40 mm |
| Max. absorption energy | 79.3 J |
| Max. absorption energy per minute | 637 J/min |
| Impact speed range | 0.3～3 m/s, depending on orifice type |
| Max. equivalent mass | 650 kg |
| Max. cycle rate | 45 ~ 60 cycles/min, depending on model |
| Operating temperature range | -5 ~ 70 ℃ |
| Max. drag | 6,370 N |
| Piston rod return force | Depending on model, up to 71.4 N or lower |
| Orifice type | Single-orifice, multiple-orifice, multiple-varying orifice |
| Damping type | Adjustable |
| End types | -S: capless -C: with cap FA-B2540 / FWM-B2540 Series: with cap only |
| Allowable eccentric angle | Within ±2.5° |
Specification notes
Q1: What is the FUJI LATEX FA/FWM-B Series?
A: The FA/FWM-B Series consists of copper-free adjustable hydraulic shock absorbers for industrial machinery and production environments where copper ions are unacceptable.
Q2: What industries are suitable for the FA/FWM-B Series?
A: The series is suitable for lithium-ion battery production, automation equipment, precision manufacturing, and other processes with restrictions on copper-containing materials.
Q3: Does the FA/FWM-B Series use copper-containing materials?
A: No. The series is designed without copper-containing materials in its main components for applications where copper ions are unacceptable.
Q4: What orifice types are available?
A: The series includes single-orifice, multiple-orifice, and multiple-varying orifice types for different impact characteristics.
Q5: Which orifice type should be selected for different speeds?
A: Single-orifice models are mainly suited to low-speed impacts, multiple-orifice models to high-speed impacts, and multiple-varying orifice models to medium-speed impacts and pneumatic cylinder applications.
Q6: What is the maximum absorption energy of the FA/FWM-B Series?
A: Maximum absorption energy reaches 79.3 J, including the FA-B2725FB, FA-B2725FD, and FWM-B2725FBD models.
Q7: What is the maximum equivalent mass?
A: Maximum equivalent mass reaches 650 kg with the FA-B2725FB model.
Q8: What is the difference between FA/FWM-B and standard FA/FWM models?
A: The main difference is the copper-free material specification. External diameters are the same as the corresponding standard models, helping simplify replacement.
Q9: What should be checked during installation?
A: Ensure sufficient mounting strength, use an external stopper, avoid excessive eccentric loading, and confirm that impact speed, absorption energy, equivalent mass, and cycle rate are within the applicable range.
Q10: How do I select the correct FA/FWM-B model?
A: Check moving mass, impact speed, drive method, absorption energy, cycle rate, thread size, stroke, and orifice type, or contact GATO Corporation for model selection support.
