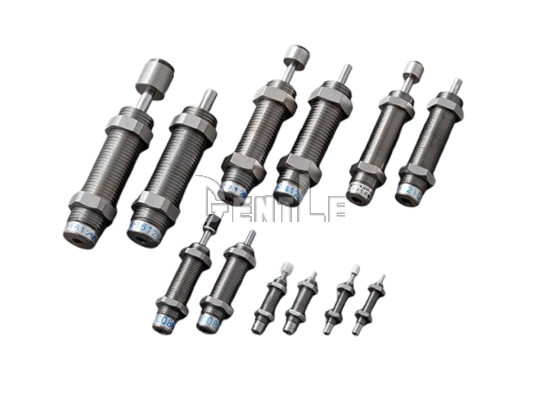

M4–M16 Fixed Hydraulic Shock Absorbers
| Item | FK M4–M16 Series |
|---|---|
| Product type | Fixed hydraulic shock absorber |
| Series models | FK-0404L, FK-0404H FK-0604L, FK-0604B, FK-0604H FK-1008L, FK-1008M, FK-1008H FK-1210L, FK-1210M, FK-1210H FK-1412L, FK-1412M, FK-1412H FK-1417L, FK-1417M, FK-1417H FK-1612L, FK-1612M, FK-1612H |
| Model characteristics | Compact fixed type; low-, medium-, and high-speed models |
| Thread size | M4×0.5, M6×0.75, M10×1, M12×1, M14×1.5, M16×1.5 |
| Stroke | 4 mm, 8 mm, 10 mm, 12 mm, 17 mm |
| Max. absorption energy | 14.7 J |
| Max. absorption energy per minute | 235 J/min |
| Impact speed range | 0.3～3 m/s, depending on model |
| Max. equivalent mass | 110 kg |
| Max. cycle rate | 60 cycles/min FK-0404 / FK-0604: 45 cycles/min |
| Operating temperature range | -5 ~ 70 ℃ |
| Max. drag | 2,940 N |
| Piston rod return force | Depending on model, 2.5 ~ 9.8 N or lower |
| Orifice type | FK-0404 / FK-0604: groove-orifice type FK-1008 to FK-1612: fixed specially-designed orifice type |
| Damping type | Fixed |
| End types | -S: capless -C: with cap -R: with urethane cap, available for FK-1008 to FK-1612 |
| Urethane cap | FK-0404 / FK-0604: not available FK-1008 to FK-1612: available |
| Product mass | Approx. 2.4 ~ 82 g depending on model and end type |
| Allowable eccentric angle | Within ±2.5° |
Specification notes
Q1: What is the FUJI LATEX FK M4–M16 Series?
A: The FK M4–M16 Series consists of fixed hydraulic shock absorbers for industrial machinery, compact automation, and precision mechanisms.
Q2: What sizes are included in the FK M4–M16 Series?
A: The series includes FK-0404, FK-0604, FK-1008, FK-1210, FK-1412, FK-1417, and FK-1612, covering thread sizes from M4×0.5 to M16×1.5.
Q3: Is the FK Series fixed or adjustable?
A: The FK M4–M16 Series uses fixed damping characteristics and does not require a damping adjustment knob.
Q4: What do L, M, and H mean in FK model numbers?
A: For FK-1008 through FK-1612, L indicates low-speed, M indicates medium-speed, and H indicates high-speed applications. FK-0404 and FK-0604 use compact groove-orifice configurations with a different model lineup.
Q5: What is the maximum absorption energy?
A: Maximum absorption energy reaches 14.7 J within the FK M4–M16 group.
Q6: What is the maximum equivalent mass?
A: Maximum equivalent mass reaches 110 kg depending on model and impact speed.
Q7: What impact speeds can the FK M4–M16 Series handle?
A: Depending on the model, the overall series covers impact speeds from 0.3 to 3 m/s.
Q8: What end configurations are available?
A: The series offers -S capless and -C with cap configurations. Urethane cap -R versions are available for FK-1008 through FK-1612 but not for FK-0404 or FK-0604.
Q9: What applications are suitable for the FK M4–M16 Series?
A: Typical applications include precision equipment, compact automation, slides, fixtures, transfer mechanisms, pneumatic cylinder ends, and other industrial end-stop mechanisms.
Q10: How do I select the correct FK model?
A: Check moving mass, impact speed, absorption energy, cycle rate, stroke, thread size, and end configuration, or contact GATO Corporation for model selection support.
