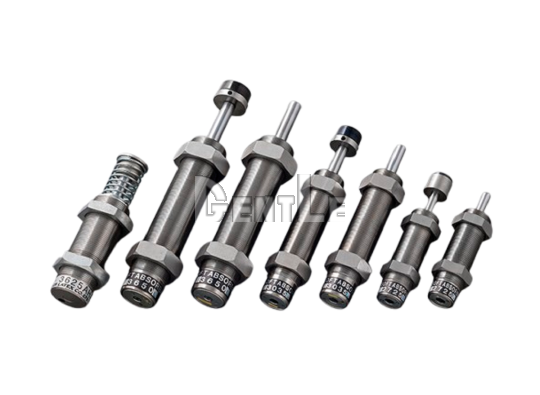

M27–M36 Fixed Hydraulic Shock Absorbers
| Item | FK M27–M36 Series |
|---|---|
| Product type | Fixed hydraulic shock absorber |
| Series models | FK-2725L, FK-2725M, FK-2725H FK-3035L, FK-3035M, FK-3035H FK-3625AL-C, FK-3625AM-C, FK-3625AH-C FK-3650AL-C, FK-3650AM-C, FK-3650AH-C FK-3650L, FK-3650M, FK-3650H |
| Model characteristics | Fixed type, low-speed, medium-speed, high-speed, and high-capacity models |
| Thread size | M27×1.5, M30×1.5, M36×1.5 |
| Stroke | 25 mm, 35 mm, 50 mm |
| Max. absorption energy | 400 J |
| Max. absorption energy per minute | 2,352 J/min |
| Impact speed range | 0.3～3 m/s, depending on model |
| Max. equivalent mass | 3,400 kg |
| Max. cycle rate | 60 cycles/min FK-3035, FK-3625A, FK-3650A, FK-3650: 30 cycles/min |
| Operating temperature range | -5 ~ 70 ℃ |
| Max. drag | 25,000 N |
| Piston rod return force | Depending on model, up to 68.6 N or lower |
| Orifice type | Multiple-orifice type |
| Damping type | Fixed |
| End types | FK-2725 / FK-3035 / FK-3650: -S: capless, -C: with cap FK-3625A / FK-3650A: -C: with cap |
| Allowable eccentric angle | Within ±2.5° |
Specification notes
Q1: What is the FUJI LATEX FK M27–M36 Series?
A: The FK M27–M36 Series consists of fixed hydraulic shock absorbers for automation, transfer systems, and industrial machinery requiring end-stop impact absorption.
Q2: What models are included in the FK M27–M36 Series?
A: The group includes FK-2725, FK-3035, FK-3625A, FK-3650A, and FK-3650, covering M27×1.5, M30×1.5, and M36×1.5 thread sizes.
Q3: Is the FK M27–M36 Series fixed or adjustable?
A: The models on this page are fixed hydraulic shock absorbers and do not require damping adjustment.
Q4: What do L, M, and H mean in FK model numbers?
A: L, M, and H identify low-, medium-, and high-speed impact characteristics. Depending on the model, impact speeds extend to approximately 1, 2, and 3 m/s respectively.
Q5: What is the maximum absorption energy of the FK M27–M36 Series?
A: Maximum absorption energy reaches 400 J with the FK-3650A Series, while the standard FK-3650 Series provides 392 J.
Q6: What is the maximum equivalent mass?
A: Maximum equivalent mass reaches 3,400 kg with FK-3650AL-C.
Q7: What is the difference between FK-3625A and FK-3650A?
A: Both use M36×1.5 threads. FK-3625A has a 25 mm stroke and up to 200 J absorption energy, while FK-3650A has a 50 mm stroke and 400 J capacity.
Q8: What is the difference between FK-3650A and FK-3650?
A: Both are M36×1.5 fixed shock absorbers with 50 mm strokes. FK-3650A provides 400 J maximum absorption energy, while FK-3650 provides 392 J.
Q9: What should be checked when installing an FK M27–M36 shock absorber?
A: Ensure sufficient mounting strength, proper alignment, and an external stopper, and confirm that absorption energy, equivalent mass, impact speed, and cycle rate remain within the applicable model specifications.
Q10: How do I select the correct FK M27–M36 model?
A: Check moving mass, impact speed, driving force, required stroke, absorption energy, cycle rate, thread size, and end configuration, or contact GATO Corporation for model selection support.
